Compared to UniformSingleLayer2d::System() this class adds thermal fluctuations. More...

#include <FrictionQPotFEM/UniformSingleLayerThermal2d.h>

Inheritance diagram for FrictionQPotFEM::UniformSingleLayerThermal2d::System:

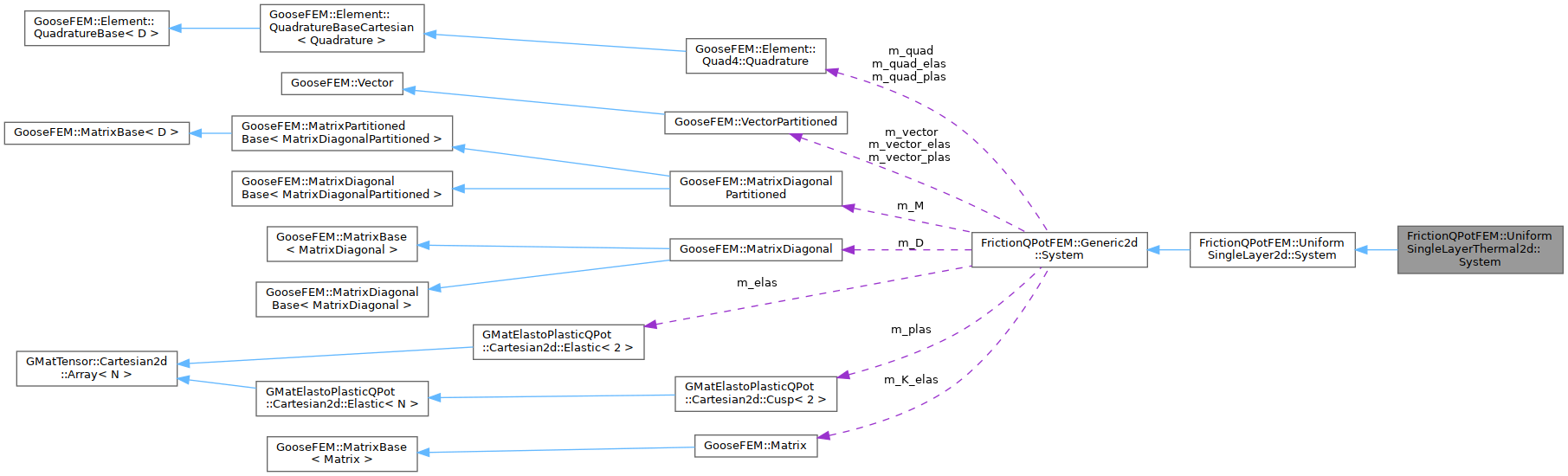

Collaboration diagram for FrictionQPotFEM::UniformSingleLayerThermal2d::System:

[legend]

Public Member Functions
template<class C , class E , class L , class M , class Y >
	System (const C &coor, const E &conn, const E &dofs, const L &iip, const L &elastic_elem, const M &elastic_K, const M &elastic_G, const L &plastic_elem, const M &plastic_K, const M &plastic_G, const Y &plastic_epsy, double dt, double rho, double alpha, double eta, double temperature_dinc, size_t temperature_seed, double temperature)
	Define the geometry, including boundary conditions and element sets. More...

std::string	type () const override
	Return the type of system. More...

const array_type::tensor< double, 2 > &	fthermal () const
	The force vector that represents the effect of temperature (on the weak layer only). More...

double	temperature () const
	Return the target temperature. More...

void	setInc (size_t arg) override
	Set increment. More...

Public Member Functions inherited from FrictionQPotFEM::UniformSingleLayer2d::System
template<class C , class E , class L , class M , class Y >
	System (const C &coor, const E &conn, const E &dofs, const L &iip, const L &elastic_elem, const M &elastic_K, const M &elastic_G, const L &plastic_elem, const M &plastic_K, const M &plastic_G, const Y &plastic_epsy, double dt, double rho, double alpha, double eta)
	Define the geometry, including boundary conditions and element sets. More...

std::string	type () const override
	Return the type of system. More...

double	typical_plastic_h () const
	Element height of all elements along the weak layer. More...

double	typical_plastic_dV () const
	Integration point volume of all elements along the weak layer. More...

void	initEventDrivenSimpleShear ()
	Initialise event driven protocol for affine simple shear. More...

double	addSimpleShearToFixedStress (double target_stress, bool dry_run=false)
	Add simple shear until a target equivalent macroscopic stress has been reached. More...

double	addElasticSimpleShearToFixedStress (double target_stress, bool dry_run=false)
	Add simple shear until a target equivalent macroscopic stress has been reached. More...

double	triggerElementWithLocalSimpleShear (double deps_kick, size_t plastic_element, bool trigger_weakest=true, double amplify=1.0)
	Apply local strain to the right to a specific plastic element. More...

array_type::tensor< double, 2 >	plastic_ElementYieldBarrierForSimpleShear (double deps_kick=0.0, size_t iquad=0)
	Read the distance to overcome the first cusp in the element. More...

Public Member Functions inherited from FrictionQPotFEM::Generic2d::System
template<class C , class E , class L , class M , class Y >
	System (const C &coor, const E &conn, const E &dofs, const L &iip, const L &elastic_elem, const M &elastic_K, const M &elastic_G, const L &plastic_elem, const M &plastic_K, const M &plastic_G, const Y &plastic_epsy, double dt, double rho, double alpha, double eta)
	Define the geometry, including boundary conditions and element sets. More...

virtual size_t	N () const
	Return the linear system size (in number of blocks). More...

virtual std::string	type () const
	Return the type of system. More...

double	rho () const
	Mass density. More...

void	setRho (double rho)
	Overwrite the mass density to a homogeneous quantity. More...

template<class T >
void	setMassMatrix (const T &val_elem)
	Overwrite mass matrix, based on certain density that is uniform per element. More...

void	setEta (double eta)
	Overwrite the value of the damping at the interface. More...

double	eta () const
	Get the damping at the interface. More...

void	setAlpha (double alpha)
	Overwrite background damping density (proportional to the velocity), To use a non-homogeneous density use setDampingMatrix(). More...

double	alpha () const
	Background damping density. More...

template<class T >
void	setDampingMatrix (const T &val_elem)
	Overwrite damping matrix, based on certain density (taken uniform per element). More...

bool	isHomogeneousElastic () const
	Check if elasticity is homogeneous. More...

double	dt () const
	Get time step. More...

void	setDt (double dt)
	Overwrite time step. More...

template<class T >
void	setU (const T &u)
	Overwrite nodal displacements. More...

template<class T >
void	setV (const T &v)
	Overwrite nodal velocities. More...

template<class T >
void	setA (const T &a)
	Overwrite nodal accelerations. More...

virtual void	updated_u ()
	Evaluate relevant forces when m_u is updated. More...

void	updated_v ()
	Evaluate relevant forces when m_v is updated. More...

template<class T >
void	setFext (const T &fext)
	Overwrite external force. More...

const auto &	elastic_elem () const
	List of elastic elements. More...

const auto &	plastic_elem () const
	List of plastic elements. More...

const auto &	conn () const
	Connectivity. More...

const auto &	coor () const
	Nodal coordinates. More...

const auto &	dofs () const
	DOFs per node. More...

const auto &	u () const
	Nodal displacements. More...

const auto &	v () const
	Nodal velocities. More...

const auto &	a () const
	Nodal accelerations. More...

auto &	mass () const
	Mass matrix, see System::m_M. More...

auto &	damping () const
	Damping matrix, see setAlpha() and setDampingMatrix(). More...

const auto &	fext ()
	External force. More...

void	applyShearStress (double sigxy)
	Modify the external force such that a shear stress is applied to the top boundary. More...

const auto &	fint ()
	Internal force. More...

const auto &	fmaterial () const
	Force deriving from elasticity. More...

const auto &	fdamp () const
	Force deriving from damping. More...

double	residual () const
	Norm of the relative residual force (the external force at the top/bottom boundaries is used for normalisation). More...

void	quench ()
	Set nodal velocities and accelerations equal to zero. More...

double	t () const
	Current time. More...

void	setT (double arg)
	Overwrite time. More...

size_t	inc () const
	The increment, see setInc(). More...

virtual void	setInc (size_t arg)
	Set increment. More...

const auto &	dV () const
	Integration point volume (of each integration point) More...

const GooseFEM::VectorPartitioned &	vector () const
	GooseFEM vector definition. More...

const GooseFEM::Element::Quad4::Quadrature &	quad () const
	GooseFEM quadrature definition. More...

GMatElastoPlasticQPot::Cartesian2d::Elastic< 2 > &	elastic ()
	Elastic material mode, used for all elastic elements. More...

GMatElastoPlasticQPot::Cartesian2d::Cusp< 2 > &	plastic ()
	Elastic material mode, used for all elastic elements. More...

array_type::tensor< double, 2 >	K () const
	Bulk modulus per integration point. More...

array_type::tensor< double, 2 >	G () const
	Shear modulus per integration point. More...

const array_type::tensor< double, 4 > &	Sig ()
	Stress tensor of each integration point. More...

const array_type::tensor< double, 4 > &	Eps ()
	Strain tensor of each integration point. More...

array_type::tensor< double, 4 >	Epsdot () const
	Strain-rate tensor (the symmetric gradient of the nodal velocities) of each integration point. More...

array_type::tensor< double, 4 >	Epsddot () const
	Symmetric gradient of the nodal accelerations of each integration point. More...

GooseFEM::MatrixPartitioned	stiffness () const
	Stiffness tensor of each integration point. More...

const array_type::tensor< double, 4 > &	plastic_Epsdot ()
	Strain-rate tensor of integration points of plastic elements only, see System::plastic. More...

void	refresh ()
	Recompute all forces. More...

template<class T >
double	eventDriven_setDeltaU (const T &delta_u, bool autoscale=true)
	Set purely elastic and linear response to specific boundary conditions. More...

const auto &	eventDriven_deltaU () const
	Get displacement perturbation used for event driven code, see eventDriven_setDeltaU(). More...

virtual double	eventDrivenStep (double deps, bool kick, int direction=1, bool yield_element=false, bool iterative=false)
	Add event driven step for the boundary conditions that correspond to the displacement perturbation set in eventDriven_setDeltaU(). More...

void	timeStep ()
	Make a time-step: apply velocity-Verlet integration. More...

long	timeSteps (size_t n, size_t nmargin=0)
	Make a number of time steps, see timeStep(). More...

size_t	timeStepsUntilEvent (size_t nmargin=0, double tol=1e-5, size_t niter_tol=20, size_t max_iter=1e7)
	Perform a series of time-steps until the next plastic event, or equilibrium. More...

std::tuple< array_type::tensor< double, 1 >, array_type::tensor< double, 2 >, array_type::tensor< double, 2 > >	minimise_highfrequency (const array_type::tensor< size_t, 1 > &nodes, const array_type::tensor< size_t, 1 > &top, size_t t_step=1, size_t nmargin=0, double tol=1e-5, size_t niter_tol=20, size_t max_iter=1e7)
	Minimise energy while doing a high-frequency measurement of: More...

template<class T >
long	flowSteps (size_t n, const T &v, size_t nmargin=0)
	Make a number of steps with the following protocol. More...

long	minimise (size_t nmargin=0, double tol=1e-5, size_t niter_tol=20, size_t max_iter=1e7, bool time_activity=false, bool max_iter_is_error=true)
	Minimise energy: run System::timeStep until a mechanical equilibrium has been reached. More...

size_t	quasistaticActivityFirst () const
	Increment with the first plastic event. More...

size_t	quasistaticActivityLast () const
	Increment with the last plastic event. More...

template<class T >
size_t	minimise_truncate (const T &idx_n, size_t A_truncate=0, size_t S_truncate=0, double tol=1e-5, size_t niter_tol=20, size_t max_iter=1e7)
	Like Generic2d::minimise(), but stops when a certain number of blocks has yielded at least once. More...

size_t	minimise_truncate (size_t A_truncate=0, size_t S_truncate=0, double tol=1e-5, size_t niter_tol=20, size_t max_iter=1e7)
	Like Generic2d::minimise(), but stops when a certain number of blocks has yielded at least once. More...

array_type::tensor< double, 2 >	affineSimpleShear (double delta_gamma) const
	Get the displacement field that corresponds to an affine simple shear of a certain strain. More...

array_type::tensor< double, 2 >	affineSimpleShearCentered (double delta_gamma) const
	Get the displacement field that corresponds to an affine simple shear of a certain strain. More...

Protected Member Functions
void	updateCache (int64_t index)
	Update cache of thermal forces on the weak layer. More...

void	computeThermalForce (bool force=false)
	Update the thermal force vector. More...

void	computeInternalExternalResidualForce () override
	Compute: More...

Protected Member Functions inherited from FrictionQPotFEM::Generic2d::System
void	computeEpsSig ()
	Compute m_Sig and m_Eps using m_u. More...

void	computeForceMaterial ()
	Update m_fmaterial based on the current displacement field m_u. More...

virtual void	computeInternalExternalResidualForce ()
	Compute: More...

Protected Attributes
size_t	m_computed
	Increment at which the thermal stress tensor was generated. More...

size_t	m_dinc
	Duration to keep the same random thermal stress tensor. More...

double	m_T
	Definition of temperature (units of equivalent stress). More...

double	m_std
	Standard deviation for signed equivalent thermal stress. More...

array_type::tensor< double, 2 >	m_fthermal
	Nodal force from temperature. More...

array_type::tensor< double, 4 >	m_cache
	Cache [ncache, m_elem_plas.size(), 3, 2]. More...

int64_t	m_cache_start
	Start index of the cache. More...

int64_t	m_ncache
	Number of cached items. More...

prrng::pcg32	m_gen
	Random generator for thermal forces. More...

Protected Attributes inherited from FrictionQPotFEM::Generic2d::System
array_type::tensor< double, 2 >	m_coor
	Nodal coordinates, see coor(). More...

size_t	m_N
	Number of plastic elements, alias of m_nelem_plas. More...

size_t	m_nelem
	Number of elements. More...

size_t	m_nelem_elas
	Number of elastic elements. More...

size_t	m_nelem_plas
	Number of plastic elements. More...

size_t	m_nne
	Number of nodes per element. More...

size_t	m_nnode
	Number of nodes. More...

size_t	m_ndim
	Number of spatial dimensions. More...

size_t	m_nip
	Number of integration points. More...

array_type::tensor< size_t, 1 >	m_elem_elas
	Elastic elements. More...

array_type::tensor< size_t, 1 >	m_elem_plas
	Plastic elements. More...

GooseFEM::Element::Quad4::Quadrature	m_quad
	Quadrature for all elements. More...

GooseFEM::Element::Quad4::Quadrature	m_quad_elas
	m_quad for elastic elements only. More...

GooseFEM::Element::Quad4::Quadrature	m_quad_plas
	m_quad for plastic elements only. More...

GooseFEM::VectorPartitioned	m_vector
	Convert vectors between 'nodevec', 'elemvec', .... More...

GooseFEM::VectorPartitioned	m_vector_elas
	m_vector for elastic elements only. More...

GooseFEM::VectorPartitioned	m_vector_plas
	m_vector for plastic elements only. More...

GooseFEM::MatrixDiagonalPartitioned	m_M
	Mass matrix (diagonal). More...

GooseFEM::MatrixDiagonal	m_D
	Damping matrix (diagonal). More...

GMatElastoPlasticQPot::Cartesian2d::Elastic< 2 >	m_elas
	Material for elastic el. More...

GMatElastoPlasticQPot::Cartesian2d::Cusp< 2 >	m_plas
	Material for plastic el. More...

array_type::tensor< double, 2 >	m_u
	Nodal displacements. More...

array_type::tensor< double, 2 >	m_v
	Nodal velocities. More...

array_type::tensor< double, 2 >	m_a
	Nodal accelerations. More...

array_type::tensor< double, 2 >	m_v_n
	Nodal velocities last time-step. More...

array_type::tensor< double, 2 >	m_a_n
	Nodal accelerations last time-step. More...

array_type::tensor< double, 3 >	m_ue
	Element vector (used for displacements). More...

array_type::tensor< double, 3 >	m_fe
	Element vector (used for forces). More...

array_type::tensor< double, 3 >	m_ue_elas
	m_ue for elastic element only More...

array_type::tensor< double, 3 >	m_fe_elas
	m_fe for elastic element only More...

array_type::tensor< double, 3 >	m_ue_plas
	m_ue for plastic element only More...

array_type::tensor< double, 3 >	m_fe_plas
	m_fe for plastic element only More...

array_type::tensor< double, 2 >	m_fmaterial
	Nodal force, deriving from elasticity. More...

array_type::tensor< double, 2 >	m_felas
	Nodal force from elasticity of elastic elements. More...

array_type::tensor< double, 2 >	m_fplas
	Nodal force from elasticity of plastic elements. More...

array_type::tensor< double, 2 >	m_fdamp
	Nodal force from damping. More...

array_type::tensor< double, 2 >	m_fvisco
	Nodal force from damping at the interface. More...

array_type::tensor< double, 2 >	m_ftmp
	Temporary for internal use. More...

array_type::tensor< double, 2 >	m_fint
	Nodal force: total internal force. More...

array_type::tensor< double, 2 >	m_fext
	Nodal force: total external force (reaction force) More...

array_type::tensor< double, 2 >	m_fres
	Nodal force: residual force. More...

array_type::tensor< double, 4 >	m_Eps
	Quad-point tensor: strain. More...

array_type::tensor< double, 4 >	m_Sig
	Quad-point tensor: stress. More...

array_type::tensor< double, 4 >	m_Epsdot_plas
	Quad-point tensor: strain-rate for plastic el. More...

GooseFEM::Matrix	m_K_elas
	Stiffness matrix for elastic elements only. More...

size_t	m_qs_inc_first = 0
	First increment with plastic activity during minimisation. More...

size_t	m_qs_inc_last = 0
	Last increment with plastic activity during minimisation. More...

size_t	m_inc
	Current increment (current time = m_dt * m_inc). More...

double	m_dt
	Time-step. More...

double	m_eta
	Damping at the interface. More...

double	m_rho
	Mass density (non-zero only if homogeneous). More...

double	m_alpha
	Background damping density (non-zero only if homogeneous). More...

bool	m_set_D
	Use m_D only if it is non-zero. More...

bool	m_set_visco
	Use m_eta only if it is non-zero. More...

bool	m_full_outdated
	Keep track of the need to recompute fields on full geometry. More...

array_type::tensor< double, 2 >	m_pert_u
	See eventDriven_setDeltaU() More...

array_type::tensor< double, 4 >	m_pert_Epsd_plastic
	Strain deviator for m_pert_u. More...

Detailed Description

Compared to UniformSingleLayer2d::System() this class adds thermal fluctuations.

The fluctuations are implemented as a dipolar force on each element edge. Both its components are drawn from a normal distribution with zero mean and 'temperature' standard deviation. The temperature specification is thereby in units of the equivalent stress, see GMatElastoPlasticQPot::Cartesian2d::Sigd().

Definition at line 52 of file UniformSingleLayerThermal2d.h.

Constructor & Destructor Documentation

◆ ~System()

virtual FrictionQPotFEM::UniformSingleLayerThermal2d::System::~System ( )

inlinevirtual

Reimplemented from FrictionQPotFEM::UniformSingleLayer2d::System.

Definition at line 58 of file UniformSingleLayerThermal2d.h.

◆ System()

template<class C , class E , class L , class M , class Y >

FrictionQPotFEM::UniformSingleLayerThermal2d::System::System	(	const C &	coor,
		const E &	conn,
		const E &	dofs,
		const L &	iip,
		const L &	elastic_elem,
		const M &	elastic_K,
		const M &	elastic_G,
		const L &	plastic_elem,
		const M &	plastic_K,
		const M &	plastic_G,
		const Y &	plastic_epsy,
		double	dt,
		double	rho,
		double	alpha,
		double	eta,
		double	temperature_dinc,
		size_t	temperature_seed,
		double	temperature
	)

inline

Define the geometry, including boundary conditions and element sets.

Template Parameters

C	Type of nodal coordinates, e.g. `array_type::tensor<double, 2>`
E	Type of connectivity and DOFs, e.g. `array_type::tensor<size_t, 2>`
L	Type of node/element lists, e.g. `array_type::tensor<size_t, 1>`

Parameters

coor	Nodal coordinates.
conn	Connectivity.
dofs	DOFs per node.
iip	DOFs whose displacement is fixed.
elastic_elem	Elastic elements.
elastic_K	Bulk modulus per quad. point of each elastic element, see setElastic().
elastic_G	Shear modulus per quad. point of each elastic element, see setElastic().
plastic_elem	Plastic elements.
plastic_K	Bulk modulus per quad. point of each plastic element, see Plastic().
plastic_G	Shear modulus per quad. point of each plastic element, see Plastic().
plastic_epsy	Yield strain per quad. point of each plastic element, see Plastic().
dt	Time step, set setDt().
rho	Mass density, see setMassMatrix().
alpha	Background damping density, see setDampingMatrix().
eta	Damping at the interface (homogeneous), see setEta().
temperature_dinc	Duration to keep the same random thermal stress tensor.
temperature_seed	Seed random generator thermal stress.
temperature	'Temperature': in units of the the equivalent stress.

Definition at line 87 of file UniformSingleLayerThermal2d.h.

Member Function Documentation

◆ computeInternalExternalResidualForce()

void FrictionQPotFEM::UniformSingleLayerThermal2d::System::computeInternalExternalResidualForce ( )

inlineoverrideprotectedvirtual

Compute:

m_fint = m_fmaterial + m_fdamp + m_fthermal
m_fext[iip] = m_fint[iip]
m_fres = m_fext - m_fint

Internal rule: all relevant forces are expected to be updated before this function is called.

Reimplemented from FrictionQPotFEM::Generic2d::System.

Definition at line 266 of file UniformSingleLayerThermal2d.h.

◆ computeThermalForce()

void FrictionQPotFEM::UniformSingleLayerThermal2d::System::computeThermalForce ( bool force = false )

inlineprotected

Update the thermal force vector.

Parameters

force If false updating is skipped if already computed for the current increment.

Definition at line 215 of file UniformSingleLayerThermal2d.h.

◆ fthermal()

const array_type::tensor< double, 2 > & FrictionQPotFEM::UniformSingleLayerThermal2d::System::fthermal ( ) const

inline

The force vector that represents the effect of temperature (on the weak layer only).

Returns: nodevec

Definition at line 170 of file UniformSingleLayerThermal2d.h.

◆ setInc()

void FrictionQPotFEM::UniformSingleLayerThermal2d::System::setInc ( size_t arg )

inlineoverridevirtual

Set increment.

Parameters

arg size_t.

Reimplemented from FrictionQPotFEM::Generic2d::System.

Definition at line 204 of file UniformSingleLayerThermal2d.h.

◆ temperature()

double FrictionQPotFEM::UniformSingleLayerThermal2d::System::temperature ( ) const

inline

Return the target temperature.

Returns: double

Definition at line 179 of file UniformSingleLayerThermal2d.h.

◆ type()

std::string FrictionQPotFEM::UniformSingleLayerThermal2d::System::type ( ) const

inlineoverridevirtual

Return the type of system.

Reimplemented from FrictionQPotFEM::UniformSingleLayer2d::System.

Definition at line 161 of file UniformSingleLayerThermal2d.h.

◆ updateCache()

void FrictionQPotFEM::UniformSingleLayerThermal2d::System::updateCache ( int64_t index )

inlineprotected

Update cache of thermal forces on the weak layer.

Definition at line 188 of file UniformSingleLayerThermal2d.h.

Member Data Documentation

◆ m_cache

array_type::tensor<double, 4> FrictionQPotFEM::UniformSingleLayerThermal2d::System::m_cache

protected

Cache [ncache, m_elem_plas.size(), 3, 2].

Definition at line 155 of file UniformSingleLayerThermal2d.h.

◆ m_cache_start

int64_t FrictionQPotFEM::UniformSingleLayerThermal2d::System::m_cache_start

protected

Start index of the cache.

Definition at line 156 of file UniformSingleLayerThermal2d.h.

◆ m_computed

size_t FrictionQPotFEM::UniformSingleLayerThermal2d::System::m_computed

protected

Increment at which the thermal stress tensor was generated.

Definition at line 150 of file UniformSingleLayerThermal2d.h.

◆ m_dinc

size_t FrictionQPotFEM::UniformSingleLayerThermal2d::System::m_dinc

protected

Duration to keep the same random thermal stress tensor.

Definition at line 151 of file UniformSingleLayerThermal2d.h.

◆ m_fthermal

array_type::tensor<double, 2> FrictionQPotFEM::UniformSingleLayerThermal2d::System::m_fthermal

protected

Nodal force from temperature.

Definition at line 154 of file UniformSingleLayerThermal2d.h.

◆ m_gen

prrng::pcg32 FrictionQPotFEM::UniformSingleLayerThermal2d::System::m_gen

protected

Random generator for thermal forces.

Definition at line 158 of file UniformSingleLayerThermal2d.h.

◆ m_ncache

int64_t FrictionQPotFEM::UniformSingleLayerThermal2d::System::m_ncache

protected

Number of cached items.

Definition at line 157 of file UniformSingleLayerThermal2d.h.

◆ m_std

double FrictionQPotFEM::UniformSingleLayerThermal2d::System::m_std

protected

Standard deviation for signed equivalent thermal stress.

Definition at line 153 of file UniformSingleLayerThermal2d.h.

◆ m_T

double FrictionQPotFEM::UniformSingleLayerThermal2d::System::m_T

protected

Definition of temperature (units of equivalent stress).

Definition at line 152 of file UniformSingleLayerThermal2d.h.

The documentation for this class was generated from the following file:

FrictionQPotFEM/UniformSingleLayerThermal2d.h

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ~System()

◆ System()

Member Function Documentation

◆ computeInternalExternalResidualForce()

◆ computeThermalForce()

◆ fthermal()

◆ setInc()

◆ temperature()

◆ type()

◆ updateCache()

Member Data Documentation

◆ m_cache

◆ m_cache_start

◆ m_computed

◆ m_dinc

◆ m_fthermal

◆ m_gen

◆ m_ncache

◆ m_std

◆ m_T
