Array of material points with an elasto-plastic material model. More...

#include <include/GMatElastoPlasticQPot/Cartesian2d.h>

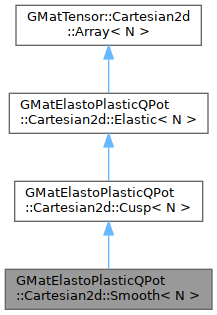

Inheritance diagram for GMatElastoPlasticQPot::Cartesian2d::Smooth< N >:

[legend]

Collaboration diagram for GMatElastoPlasticQPot::Cartesian2d::Smooth< N >:

[legend]

Public Member Functions
template<class T , class Y >
	Smooth (const T &K, const T &G, const Y &epsy)
	Construct system. More...

void	refresh (bool compute_tangent=true) override
	Recompute stress from strain. More...

array_type::tensor< double, N >	energy () const override
	Potential energy per item. More...

Public Member Functions inherited from GMatElastoPlasticQPot::Cartesian2d::Cusp< N >
template<class T , class Y >
	Cusp (const T &K, const T &G, const Y &epsy)
	Construct system. More...

const array_type::tensor< double, N+1 > &	epsy () const
	Yield strains per item. More...

template<class T >
void	set_epsy (const T &epsy)
	Overwrite yield strains per item. More...

const array_type::tensor< size_t, N > &	i () const
	Index of the current yield strain per item. More...

const array_type::tensor< double, N > &	eps () const
	Equivalent strain per item. More...

array_type::tensor< double, N >	epsy_left () const
	Current yield strain left per item. More...

array_type::tensor< double, N >	epsy_right () const
	Current yield strain right per item. More...

array_type::tensor< double, N >	epsp () const
	Plastic strain per item. More...

void	refresh (bool compute_tangent=true) override
	Recompute stress from strain. More...

array_type::tensor< double, N >	energy () const override
	Potential energy per item. More...

Public Member Functions inherited from GMatElastoPlasticQPot::Cartesian2d::Elastic< N >
template<class T >
	Elastic (const T &K, const T &G)
	Construct system. More...

const array_type::tensor< double, N > &	K () const
	Bulk modulus per item. More...

const array_type::tensor< double, N > &	G () const
	Shear modulus per item. More...

template<class T >
void	set_Eps (const T &arg)
	Set strain tensors. More...

virtual void	refresh (bool compute_tangent=true)
	Recompute stress from strain. More...

const array_type::tensor< double, N+2 > &	Eps () const
	Strain tensor per item. More...

array_type::tensor< double, N+2 > &	Eps ()
	Strain tensor per item. More...

const array_type::tensor< double, N+2 > &	Sig () const
	Stress tensor per item. More...

const array_type::tensor< double, N+4 > &	C () const
	Tangent tensor per item. More...

virtual array_type::tensor< double, N >	energy () const
	Potential energy per item. More...

Public Member Functions inherited from GMatTensor::Cartesian2d::Array< N >
	Array (const std::array< size_t, N > &shape)
	Constructor. More...

const std::array< size_t, N > &	shape () const
	Shape of the array (of scalars). More...

const std::array< size_t, N+2 > &	shape_tensor2 () const
	Shape of the array of second-order tensors. More...

const std::array< size_t, N+4 > &	shape_tensor4 () const
	Shape of the array of fourth-order tensors. More...

array_type::tensor< double, N+2 >	O2 () const
	Array of Cartesian2d::O2() More...

array_type::tensor< double, N+4 >	O4 () const
	Array of Cartesian2d::O4() More...

array_type::tensor< double, N+2 >	I2 () const
	Array of Cartesian2d::I2() More...

array_type::tensor< double, N+4 >	II () const
	Array of Cartesian2d::II() More...

array_type::tensor< double, N+4 >	I4 () const
	Array of Cartesian2d::I4() More...

array_type::tensor< double, N+4 >	I4rt () const
	Array of Cartesian2d::I4rt() More...

array_type::tensor< double, N+4 >	I4s () const
	Array of Cartesian2d::I4s() More...

array_type::tensor< double, N+4 >	I4d () const
	Array of Cartesian2d::I4d() More...

Additional Inherited Members
Static Public Attributes inherited from GMatTensor::Cartesian2d::Array< N >
static constexpr std::size_t	rank = N
	Rank of the array (the actual rank is increased with the tensor-rank). More...

Protected Member Functions inherited from GMatElastoPlasticQPot::Cartesian2d::Cusp< N >
template<class T , class Y >
void	init_Cusp (const T &K, const T &G, const Y &epsy)
	Construct system. More...

Protected Member Functions inherited from GMatElastoPlasticQPot::Cartesian2d::Elastic< N >
template<class T >
void	init_Elastic (const T &K, const T &G)
	Constructor alias. More...

Protected Member Functions inherited from GMatTensor::Cartesian2d::Array< N >
void	init (const std::array< size_t, N > &shape)
	Constructor 'alias'. More...

Protected Attributes inherited from GMatElastoPlasticQPot::Cartesian2d::Cusp< N >
array_type::tensor< size_t, N >	m_i
	Index of the current yield strain per item. More...

array_type::tensor< double, N >	m_eps
	Equivalent strain. More...

array_type::tensor< double, N+1 >	m_epsy
	Yield strain sequence. More...

size_t	m_nyield
	shape(-1) More...

Protected Attributes inherited from GMatElastoPlasticQPot::Cartesian2d::Elastic< N >
array_type::tensor< double, N >	m_K
	Bulk modulus per item. More...

array_type::tensor< double, N >	m_G
	Shear modulus per item. More...

array_type::tensor< double, N+2 >	m_Eps
	Strain tensor per item. More...

array_type::tensor< double, N+2 >	m_Sig
	Stress tensor per item. More...

array_type::tensor< double, N+4 >	m_C
	Tangent per item. More...

Protected Attributes inherited from GMatTensor::Cartesian2d::Array< N >
size_t	m_size
	Size of the array (of scalars) == prod(m_shape). More...

std::array< size_t, N >	m_shape
	Shape of the array (of scalars). More...

std::array< size_t, N+2 >	m_shape_tensor2
	Shape of an array of 2nd-order tensors == [m_shape, 2, 2]. More...

std::array< size_t, N+4 >	m_shape_tensor4
	Shape of an array of 4th-order tensors == [m_shape, 2, 2, 2, 2]. More...

Static Protected Attributes inherited from GMatTensor::Cartesian2d::Array< N >
static constexpr size_t	m_ndim = 2
	Number of dimensions of tensors. More...

static constexpr size_t	m_stride_tensor2 = 4
	Storage stride for 2nd-order tensors ( \( 2^2 \)). More...

static constexpr size_t	m_stride_tensor4 = 16
	Storage stride for 4th-order tensors ( \( 2^4 \)). More...

Detailed Description

template<size_t N>
class GMatElastoPlasticQPot::Cartesian2d::Smooth< N >

Array of material points with an elasto-plastic material model.

The response is defined by a potential energy landscape consisting of a sequence of smooth wells.

Template Parameters

N	Rank of the array.

Definition at line 579 of file Cartesian2d.h.

Constructor & Destructor Documentation

◆ Smooth()

template<size_t N>

template<class T , class Y >

GMatElastoPlasticQPot::Cartesian2d::Smooth< N >::Smooth	(	const T &	K,
		const T &	G,
		const Y &	epsy
	)

inline

Construct system.

Parameters

K	Bulk modulus per item.
G	Shear modulus per item.
epsy	Yield strain sequence per item.

Definition at line 612 of file Cartesian2d.h.

Member Function Documentation

◆ energy()

template<size_t N>

array_type::tensor< double, N > GMatElastoPlasticQPot::Cartesian2d::Smooth< N >::energy ( ) const

inlineoverridevirtual

Potential energy per item.

Returns: [shape()].

Reimplemented from GMatElastoPlasticQPot::Cartesian2d::Cusp< N >.

Definition at line 659 of file Cartesian2d.h.

◆ refresh()

template<size_t N>

void GMatElastoPlasticQPot::Cartesian2d::Smooth< N >::refresh ( bool compute_tangent = true )

inlineoverridevirtual

Recompute stress from strain.

From C++, this function need never be called: the API takes care of this.

For Python, this function should only be called when you modify elements of Eps(). For example

mat.Eps[e, q, 0, 1] = value
...
mat.refresh() # "Eps" was changed without "mat" knowing

Instead, if you write an nd-array, the API takes care of the refresh. I.e.

mat.Eps = new_Eps
# no further action needed, "mat" was refreshed

Note though that you can call this function as often as you like, you will only loose time.

Parameters

compute_tangent Irrelevant, ignored.

Reimplemented from GMatElastoPlasticQPot::Cartesian2d::Cusp< N >.

Definition at line 617 of file Cartesian2d.h.

The documentation for this class was generated from the following file:

GMatElastoPlasticQPot/Cartesian2d.h
