GooseFEM::Mesh::RegularBase< D > Class Template Reference

CRTP base class for regular meshes. More...

#include <include/GooseFEM/Mesh.h>

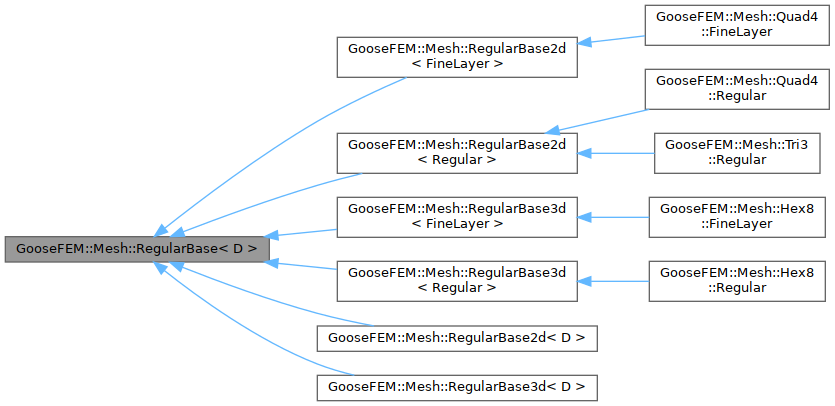

Inheritance diagram for GooseFEM::Mesh::RegularBase< D >:

Public Types
using	derived_type = D
	Underlying type. More...

Public Member Functions
auto	nelem () const
	Number of elements. More...
auto	nnode () const
	Number of nodes. More...
auto	nne () const
	Number of nodes-per-element == 4. More...
auto	ndim () const
	Number of dimensions == 2. More...
auto	nelx () const
	Number of elements in x-direction == width of the mesh in units of h. More...
auto	nely () const
	Number of elements in y-direction == height of the mesh, in units of h,. More...
auto	h () const
	Linear edge size of one 'block'. More...
auto	getElementType () const
	The ElementType(). More...
auto	coor () const
	Nodal coordinates [nnode, ndim]. More...
auto	conn () const
	Connectivity [nelem, nne]. More...
auto	dofs () const
	DOF numbers for each node (numbered sequentially) [nnode, ndim]. More...
auto	dofsPeriodic () const
	DOF-numbers for the case that the periodicity if fully eliminated. More...
auto	nodesPeriodic () const
	Periodic node pairs, in two columns: (independent, dependent). More...
auto	nodesOrigin () const
	Reference node to use for periodicity, because all corners are tied to it. More...

Detailed Description

template<class D>
class GooseFEM::Mesh::RegularBase< D >

CRTP base class for regular meshes.

Definition at line 181 of file Mesh.h.

Member Typedef Documentation

derived_type

template<class D >

using GooseFEM::Mesh::RegularBase< D >::derived_type = D

Underlying type.

Definition at line 186 of file Mesh.h.

Member Function Documentation

conn()

template<class D >

auto GooseFEM::Mesh::RegularBase< D >::conn ( ) const

inline

Connectivity [nelem, nne].

Returns

nodes per element

Definition at line 273 of file Mesh.h.

coor()

template<class D >

auto GooseFEM::Mesh::RegularBase< D >::coor ( ) const

inline

Nodal coordinates [nnode, ndim].

Returns

coordinates per node

Definition at line 264 of file Mesh.h.

dofs()

template<class D >

auto GooseFEM::Mesh::RegularBase< D >::dofs ( ) const

inline

DOF numbers for each node (numbered sequentially) [nnode, ndim].

Returns

DOFs per node

Definition at line 282 of file Mesh.h.

dofsPeriodic()

template<class D >

auto GooseFEM::Mesh::RegularBase< D >::dofsPeriodic ( ) const

inline

DOF-numbers for the case that the periodicity if fully eliminated.

Returns

DOF numbers for each node [nnode, ndim].

Definition at line 291 of file Mesh.h.

getElementType()

template<class D >

auto GooseFEM::Mesh::RegularBase< D >::getElementType ( ) const

inline

The ElementType().

Returns

element type

Definition at line 255 of file Mesh.h.

h()

template<class D >

auto GooseFEM::Mesh::RegularBase< D >::h ( ) const

inline

Linear edge size of one 'block'.

Returns

double

Definition at line 246 of file Mesh.h.

ndim()

template<class D >

auto GooseFEM::Mesh::RegularBase< D >::ndim ( ) const

inline

Number of dimensions == 2.

Returns

unsigned int

Definition at line 219 of file Mesh.h.

nelem()

template<class D >

auto GooseFEM::Mesh::RegularBase< D >::nelem ( ) const

inline

Number of elements.

Returns

unsigned int

Definition at line 192 of file Mesh.h.

nelx()

template<class D >

auto GooseFEM::Mesh::RegularBase< D >::nelx ( ) const

inline

Number of elements in x-direction == width of the mesh in units of h.

Returns

unsigned int

Definition at line 228 of file Mesh.h.

nely()

template<class D >

auto GooseFEM::Mesh::RegularBase< D >::nely ( ) const

inline

Number of elements in y-direction == height of the mesh, in units of h,.

Returns

unsigned int

Definition at line 237 of file Mesh.h.

nne()

template<class D >

auto GooseFEM::Mesh::RegularBase< D >::nne ( ) const

inline

Number of nodes-per-element == 4.

Returns

unsigned int

Definition at line 210 of file Mesh.h.

nnode()

template<class D >

auto GooseFEM::Mesh::RegularBase< D >::nnode ( ) const

inline

Number of nodes.

Returns

unsigned int

Definition at line 201 of file Mesh.h.

nodesOrigin()

template<class D >

auto GooseFEM::Mesh::RegularBase< D >::nodesOrigin ( ) const

inline

Reference node to use for periodicity, because all corners are tied to it.

Returns

Node number.

Definition at line 318 of file Mesh.h.

nodesPeriodic()

template<class D >

auto GooseFEM::Mesh::RegularBase< D >::nodesPeriodic ( ) const

inline

Periodic node pairs, in two columns: (independent, dependent).

Returns

[ntyings, ndim].

Definition at line 309 of file Mesh.h.

---

The documentation for this class was generated from the following file:

• GooseFEM/Mesh.h
